DNGA15 CBN Turning Inserts For Hardened Steel
Description
Package Information
Inquiry
55° Rhombic Negative Rake / High Hardness / Long Life

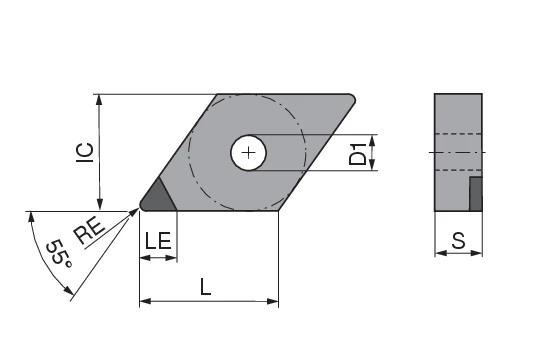

| Item | Specification |
| Insert Model | DNGA150404 / DNGA150408 / DNGA150412 |
| Shape | 55° Rhombic |
| Rake Type | Negative Rake 0° |
| Inscribed Circle (IC) | 12.7 mm |
| Plate Thickness | 4.76 mm |
| Fixing Hole Diameter | 5.16 mm |
| Corner Radius | 0.4mm / 0.8mm / 1.2mm |
| Usable Edges | 2 Edges (Double-sided) |
Our DNGA15 series CBN inserts adopt high-hardness PCBN material and standard ISO 55° rhombic negative rake structure. Featuring stable cutting performance, excellent wear resistance and high-temperature resistance, these CBN inserts are suitable for continuous and light intermittent dry turning. It can efficiently machine hardened steel, alloy steel, ductile iron and chilled cast iron, greatly improving processing efficiency and surface quality instead of traditional grinding.
